Four-bundle Conductor Max Intermittent Tension 2x70kN Hydraulic Cable Laying Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains.
Configuration
- 2 hydraulic dynamometers
- Hydraulic oil cooling system
- 2 digital meter counters
- 2 digital speed meters
- Control instruments for hydraulic system and diesel engine
- Hydraulic front stabilizer
- Grounding connection point

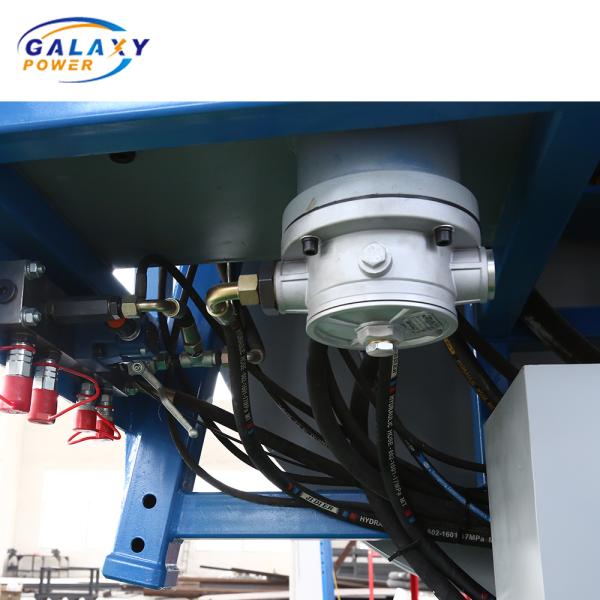

- Hydraulic power pack to control up to 4 separated drum stands with hydraulic motor
Hydraulic Transmission
- The machine can realize step less speed
- The machine is provided with tension presetting system
Performance/Engine
| Model | Max intermittent tension | Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| | kN | kN | km/h | km/h | kN | kN | km/h | kw(hp) | | V |
| GL1X7.5 | | 7.5 | | 2.4 | | | | | | |
| GL1X20 | | 20 | | 5 | | | | | | |
| GL1X20II | | 20 | | 4 | | | | | | |
| GL1X20III | | 20 | 2.5 | 5 | 10 | 15 | | 10kw (3600rpm) | Air | |
| GL1X30 | | 30 | 2.5 | 5 | 15 | 20 | | 12(16) | | 12 |
| GL1X40 | 45 | 40 | 2.5 | 5 | 20 | 35 | | 77(103) | Water | 24 |
| GL1X50 | 50 | 40 | 2.5 | 5 | 25 | 45 | 2.4 | 77(103) | Water | 24 |
| GL140IV | 1x140 | 1x120 | 2.5 | 5 | 35 | 1x120 | 1.2 | 77(103) | Water | 24 |
| GL2X35 | 2x40/ 1x80 | 2x35/ 1x70 | 2.5 | 5 | 2x20/ 1x40 | 2x30/ 1x60 | 5 | 77(103) | Water | 24 |
| GL2X40 | 2x45/ 1x90 | 2x40/ 1x80 | 2.5 | 5 | 2x20/ 1x40 | 2x35/ 1x70 | 5 | 77(103) | Water | 24 |
| GL2X50 | 2x55/ 1x110 | 2x50/ 1x100 | 2.5 | 5 | 2x25/ 1x50 | 2x45/ 1x90 | 5 | 77(103) | Water | 24 |
| GL2X70 | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 2x60/ 1x120 | 5 | 77(103) | Water | 24 |
| GL2x70IV | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 2x60/ 1x120 | 5 | 77(103) | Water | 24 |
| GL2X90 | 2x100/ 1x200 | 2x90/ 1x180 | 2.5 | 5 | 2x40/ 1x80 | 2x80/ 1x160 | 2 | 130kw (2500r/min) | Water | 24 |
| GL4x50 | 4x50/ 2x200 | 4x40/ 2x80 | 2.5 | 5 | 4x20/ 2x40 | 4x40/ 2x80 | 1.25 | 77(103) | Water | 24 |
Characteristics
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| | mm | mm | mm | mm | | kg | mm |
| GL1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300x1250x1620 |
| GL1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080x1930x2300 |
| GL1X20II | 800 | 23 | | 45 | 5 | 950 | 2400x1500x1650 |
| GL1X20III | 800 | 22.5 | | 55 | 5 | 1150 | 2500x1500x1700 |
| GL1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700x1950x2150 |
| GL1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000x2000x2300 |
| GL1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000x1900x2300 |
| GL140IV | 1500 | 40 | | | 16 | 10000 | 5500x2280x2700 |
| GL2X35 | 1300 | 40 | | | 2x5 | 4500 | 4300x2250x2700 |
| GL2X40 | 1300/1500 | 40 | | | 2x5 | 6230 | 4300x2250x2700 |
| GL2X50 | 1300/1500 | 40 | | | 2x5 | 6000 | 4700x2300x2700 |
| GL2X70 | 1700 | 40 | | | 2x6 | 7500 | 4700x2300x2700 |
| GL2x70IV | 1500 | 40 | | | 2x8 | 10000 | 5500x2280x2700 |
| GL2X90 | 1900 | 50 | | | 2x6 | 7500 | 5400x2300x2700 |
| GL4x50 | 1500 | 40 | | | 4x5 | 13000 | 5900x2300x2700 |
Main Configuration
- Engine: Cummins
- Hydraulic pump: GermanRexroth/Dnish Danfoss
- Main motor: German Rexroth/French Leduc
- Speed reducer: German Rexrothn
- Hydraulic meter: German
- Operating handle: German Rexroth
Additional Devices
- Lighting system for the trailer
- Air brake system for the trailer(extra charge)
- 4 hydraulic conductor clamps for drum change operations (extra charge)
- Digital speed and meter counter
COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
